Quantum Design AFSEM® AFM Insert - Atomic Force Microscope for SEM/FIB

Atomic Force Microscope for SEM/FIB

Quantum Design AFSEM® AFM Insert

AFSEM is an atomic force microscope (AFM), designed for integration in a SEM or Dualbeam (SEM/FIB) microscope. Its open access design allows you to simultaneously operate SEM and AFM inside the SEM vacuum chamber. The correlated image data of AFM and SEM enable unique characterization of your sample, and the combination of complementary techniques is a key success factor for gaining new insights into the micro and nano worlds. AFSEM enables you to easily combine two of the most powerful analysis techniques to greatly extend your correlative microscopy and analysis possibilities.

AFSEM lets you simultaneously image your sample with high resolution, create true 3D-topography representations, and accurately measure heights, distances and even material properties, all while maintaining the large SEM field of view to position your AFSEM cantilever exactly where you want it. The powerful AFSEM control software allows for optimized and intuitive measuring, system handling, and data analysis.

For product or material analysis, it is often desirable to analyze a sample with multiple techniques and look for correlations between parameters. For imaging techniques like SEM and AFM this means one should make sure to analyze the exact same area. What easier way for correlative SEM-AFM analysis than performing the AFM measurement directly inside the SEM?

AFSEM Modes

AFSEM Features

  • Small size; does not impede SEM operation
  • Multiple measurement modes available
  • Uses self-sensing cantilevers
  • Powerful easy-to-use control software
  • Compatible with most SEMs/FIBs

The AFSEM is a fully functional atomic force microscope and therefore is capable of all normal measurement modes expected from a standard AFM. Contact mode, intermittent contact mode, non-contact, force-volume, and phase contrast mode are all available and the user can switch between them easily using the controller software. The advanced modes, namely Conductive AFM (C-AFM), Magnetic Force Microscopy (MFM) and Electrostatic Force Microscopy (EFM) are also available by using the functional probes. Kelvin Probe Force Microscopy (KPFM) and Scanning Thermal Microscopy (SThM) are currently under development.

Measurement Modes

Standard AFM

In contact mode, the tip is in contact with the surface of the sample and follows the topography closely in the repulsive regime. For contact mode long and soft cantilevers with low force constants are used.

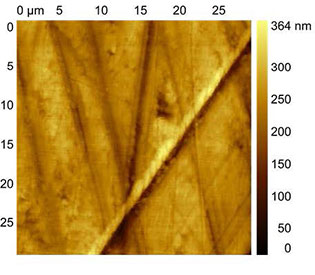

(Figures 1 and 2) AFSEM image of a polymer surface obtained in contact mode.
(Figures 1 and 2) AFSEM image of a polymer surface obtained in contact mode.
(Figures 1 and 2) AFSEM image of a polymer surface obtained in contact mode.


In intermittent contact mode, also called dynamic mode, the cantilever is oscillated near its resonance frequency. When the tip comes close to the surface, the interaction between the tip and the sample cause the amplitude of the oscillation to change. As the cantilever is scanning over the sample, the height is adjusted to maintain a set cantilever oscillation amplitude. An AFM image is therefore produced by imaging the force of the intermittent contacts of the tip with the surface.

AFSEM image of freestanding graphene membranes obtained in intermittent contact mode. (Figure 1) Correlative SEM/AFM image of the graphene membranes.
AFSEM image of freestanding graphene membranes obtained in intermittent contact mode.
(Figure 1) Correlative SEM/AFM image of the graphene membranes.
AFSEM image of freestanding graphene membranes obtained in intermittent contact mode. (Figure 2) High-resolution AFM image of a single freestanding graphene membrane.
(Figure 2) High-resolution AFM image of a single freestanding graphene membrane.

In non-contact mode, the tip of the cantilever does not contact the sample surface. The tip is oscillated only with a very small amplitude and is affected only by the long-range forces and therefore neither sample degradation nor tip degradation occur.

AFSEM image of silicon micro-pillar surface obtained in non-contact mode. (Figure 1) Correlative SEM/AFM image of the micro-pillar surface.
AFSEM image of silicon micro-pillar surface obtained in non-contact mode.
(Figure 1) Correlative SEM/AFM image of the micro-pillar surface.
AFSEM image of silicon micro-pillar surface obtained in non-contact mode. (Figure 2) High-resolution AFM image of the micro-pillar surface decorated with nano-wire network.
(Figure 2) High-resolution AFM image of the micro-pillar surface decorated with nano-wire network.

In force-volume mode, force measurements are combined with topographic imaging. Typical AFM images depict the topography of a surface by measuring the action of a feedback loop to maintain a constant tip/sample interaction as the tip is scanned across the surface. The force volume data set combines nearly simultaneously measured topographic and force information into a single data set allowing the microscopist to test for correlations between forces and surface features.

AFSEM image of bone sample with a partially dissolved implant obtained in force volume mode. (Figure 1) AFM Topography image of the bone area and transition region, where the implant is partially dissolved.
AFSEM image of bone sample with a partially dissolved implant obtained in force volume mode.
(Figure 1) AFM Topography image of the bone area and transition region, where the implant is partially dissolved.
AFSEM image of bone sample with a partially dissolved implant obtained in force volume mode. (Figure 2) Force volume data of the same area.
(Figure 2) Force volume data of the same area.
AFSEM image of bone sample with a partially dissolved implant obtained in force volume mode. (Figure 3) Overlay of topography and force volume data.
(Figure 3) Overlay of topography and force volume data.

C-AFM

Conductive AFM mode (C-AFM) measures the conductive properties of the sample using a conductive tip. The conductive tips used by AFSEM are produced using Focused Electron Beam Induced Deposition (FEBID) and are made of pure Platinum, which ensures their high stability and longevity. There is no extra module needed for C-AFM measurements.

AFSEM C-AFM image of a gold electrode on a silicon substrate. (Figure 1) SEM image of the region of interest displaying the gold electrode with a porous transition region at the edge of the electrode structure.
AFSEM C-AFM image of a gold electrode on a silicon substrate.
(Figure 1) SEM image of the region of interest displaying the gold electrode with a porous transition region at the edge of the electrode structure.
AFSEM C-AFM image of a gold electrode on a silicon substrate. (Figure 2) AFM Topography image of the electrode structure.
(Figure 2) AFM Topography image of the electrode structure.
AFSEM C-AFM image of a gold electrode on a silicon substrate. (Figure 3) C-AFM image of the electrode structure that reveals the highly conducting gold electrode as well as the non-conducting silicon surface region.
(Figure 3) C-AFM image of the electrode structure that reveals the highly conducting gold electrode as well as the non-conducting silicon surface region.

MFM

Magnetic AFM Mode (MFM) is used to study the magnetic properties of magnetic materials using a magnetic tip. The conductive tips used by AFSEM are produced using Focused Electron Beam Induced Deposition (FEBID) and are made of Fe/Co. AFSEM uses a dual pass technique:  A first scan images the topography. Then a second scan, where the tip follows the measured topography with a set distance above the sample, measures the phase shift due to magnetic force between tip and sample. By default, the AFSEM is capable of this so called "lift-mode."

AFSEM MFM image obtained on a multilayered magnetic sample. (Figure 1) AFM Topography.
AFSEM MFM image obtained on a multilayered magnetic sample.
(Figure 1) AFM Topography.
AFSEM MFM image obtained on a multilayered magnetic sample. (Figure 2) MFM Phase contrast revealing the different magnetic domains.
(Figure 2) MFM Phase contrast revealing the different magnetic domains.
AFSEM MFM image obtained on a multilayered magnetic sample. (Figure 3) Overlay of topography and magnetic signal.
(Figure 3) Overlay of topography and magnetic signal.

AFSEM Models

AFSEM Nano

AFSEM Nano
  • World's smallest AFM insert for your SEM/FIB
  • Easy integration in space-limited environments
  • Full grade V titanium body for best mechanical stability and performance
  • XY Closed-loop tip-scanner with 24 x 24 µm scan range
  • Z-Range: 15 µm
  • All standard AFM modes

AFSEM 1.0

AFSEM 1.0
  • Multi-purpose in-situ AFM for correlative analysis
  • Use inside your SEM as well as stand-alone AFM
  • XY Closed-loop tip-scanner with 34 x 34 µm scan range
  • Z-Range: 5 µm (15 µm optional)
  • All standard AFM modes
