Qnami ProteusQ™ Scanning NV Microscope - Quantum Magnetometry at Atomic Scale

Quantum Magnetometry at Atomic Scale

Qnami ProteusQ™ Scanning NV Microscope

The Qnami ProteusQ is a complete quantum microscope system. It is the first scanning NV (nitrogen-vacancy) microscope for the analysis of magnetic materials at the atomic scale. By combining NV magnetometry and scanning probe microscopy techniques into a single instrument, scanning NV magnetometry provides simultaneous acquisition of the sample's topography and its surface magnetic fields with nanoscale resolution. While the tip's radius of curvature determines the lateral resolution for the topography image, it is the distance between the NV center and the sample surface which determines the lateral resolution for the magnetic image.

The ProteusQ system comes with state-of-the-art electronics and software, and has been designed to allow for future adjustments, expansion and capability upgrades. Qnami’s proprietary quantum technology allows you to see directly the most subtle properties of your samples and the effect of microscopic changes in your design or fabrication process.

Features

  • Ultra low drift, closed loop scanners
  • Stable optical design
  • Fast and safe tip exchange
  • Easy near-field antenna approach
  • Single spin quantum sensor
  • Dedicated high frequency electronics allowing:
    • Optically Detected Magnetic Resonance spectroscopy
    • Optional high frequency pulsing capabilities

Possible Applications

  • Material Characterization
  • Current imaging in integrated circuits
  • Quantum devices
  • Spintronics
  • Non-volatile memories
  • 2D materials
  • Biological systems

Move easily from fast sample preview to detailed analysis:

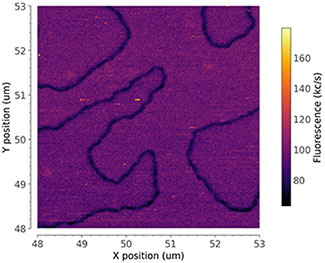

NV-Fluorescence Quenching Mode
(Figure 1) NV-Fluorescence Quenching Mode
Iso-B Mode
(Figure 2) Iso-B Mode
Full-B Mode
(Figure 3) Full-B Mode
